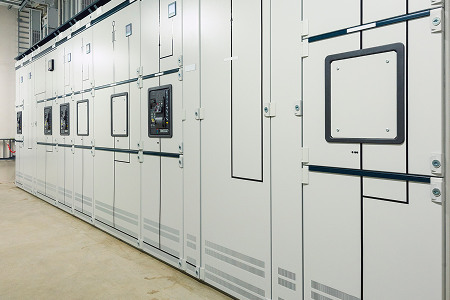

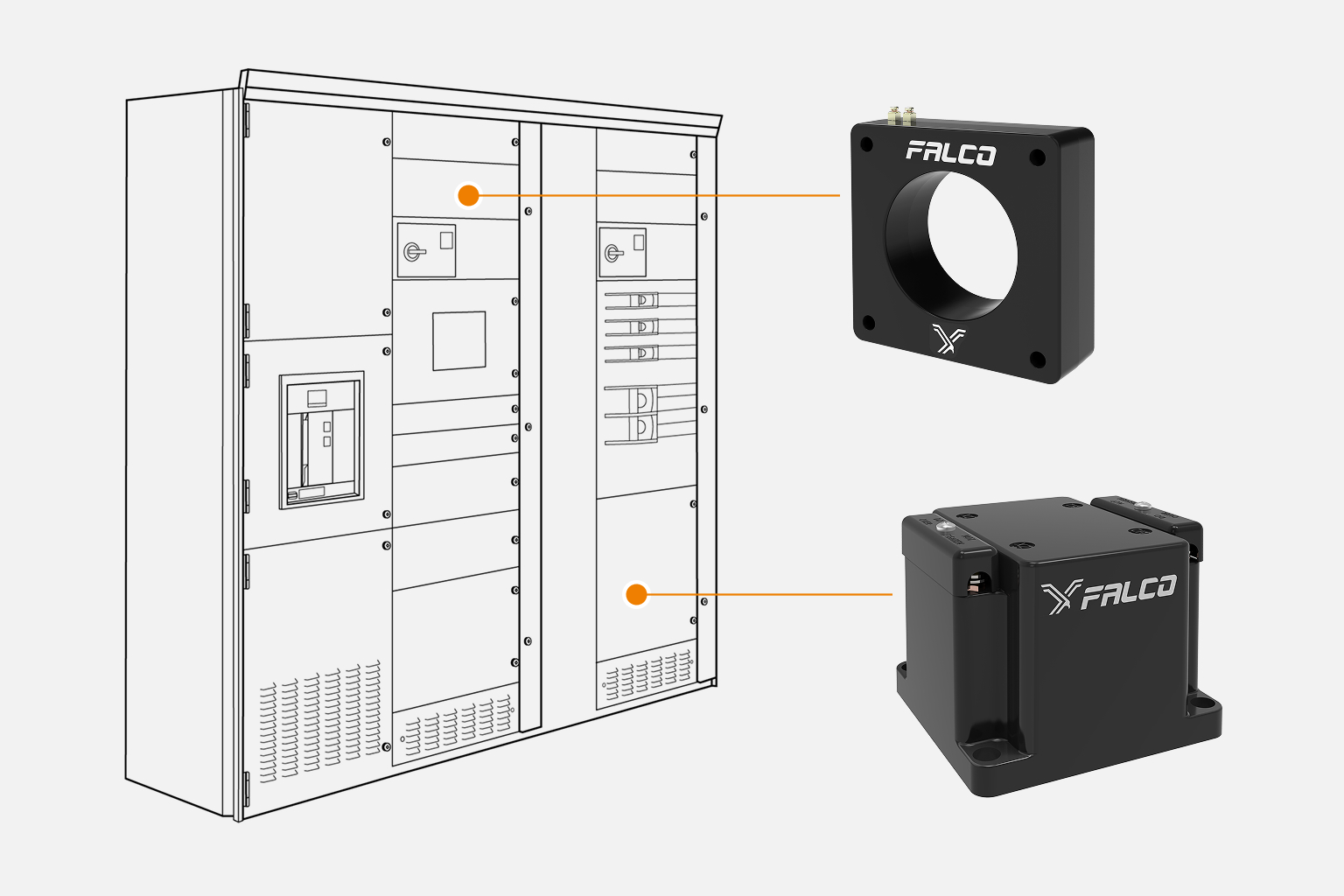

Switchgear is a system designed to control, protect, and isolate electrical equipment. It enables safe de-energization for maintenance and facilitates fault clearing downstream.
Switchgear
PRODUCTS

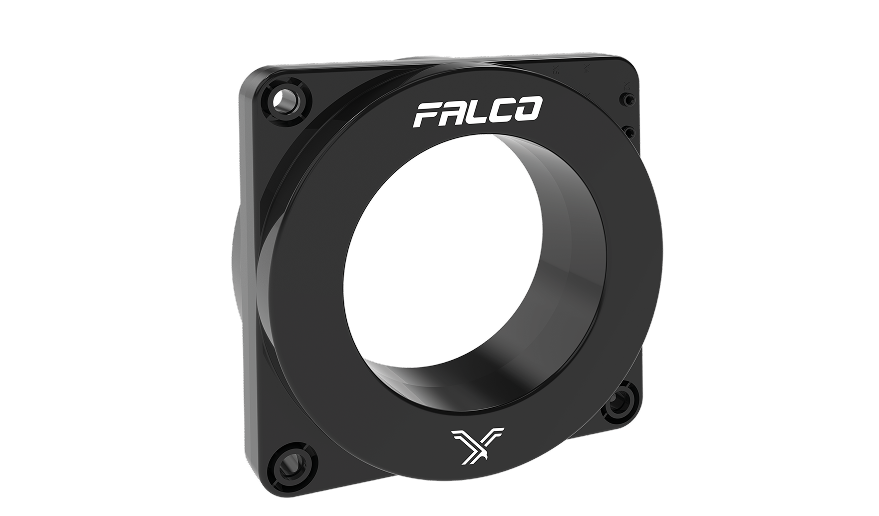

Window-Type Current Transformer
ICTW05
Features
- Primary Current: 50 to 6000Amp
- Secondary Current: up to 5A
- Relay Class: C800 Max
- Metering Class: 0.3 at 45VA for ratios above 600:5A
- Rating Factor: 2.0 @30°C
- Basic Insulation level: 10kV
- Frequency: 50-400Hz
- Applicable Standard: IEEE C57.13, IEC 61869
- UL & CSA approved
- Available with single and multiple ratio secondary
- Customized design upon request

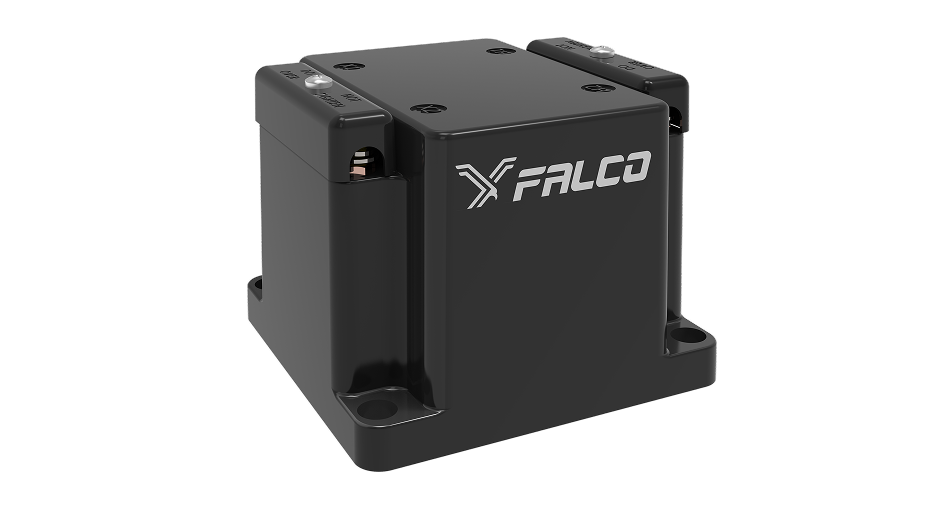

Instrument Low Voltage Transformer
IVLW01
Features
- Primary Voltage: 69.3V to 600V
- Secondary Voltage: 120V
- Accuracy Class: 1.2X, 0.6W at 60Hz
- Thermal Rating: 150 VA AT 30°C, 100 VA AT 55°C
- Applicable Standard: ANSI IEEE C57.13
- UL & CSA approved
- Provided with two plastic terminal covers to ensure safety
