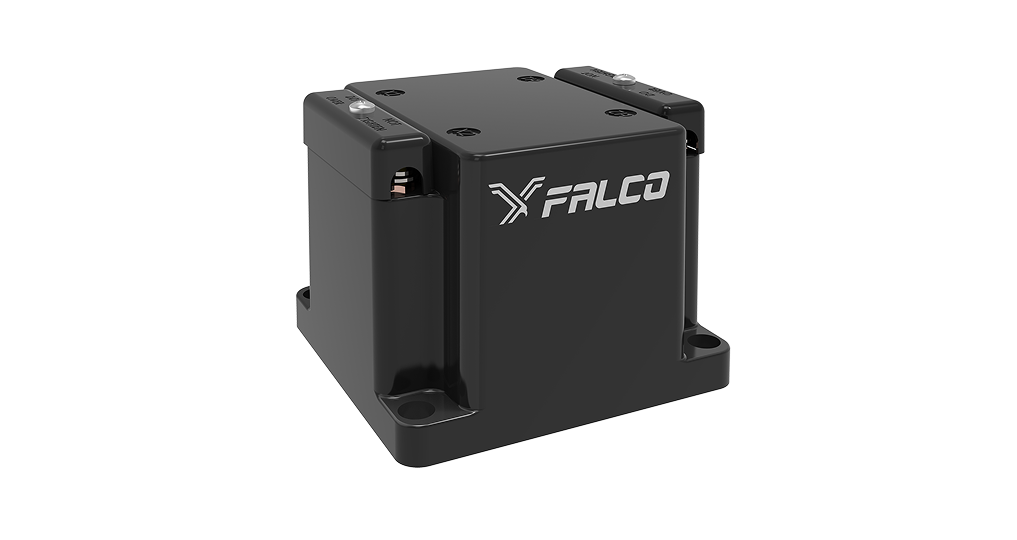

Instrument Low Voltage Transformers

Instrument Low Voltage Transformers guarantee insulation from high-voltage circuits allowing the user to monitor safely the electrical equipment.

Instrument Voltage Transformers (VTs) or Potential Transformer (PT), are high-accuracy electrical devices that reduces the voltage to level needed by the protective relays and metering devices.

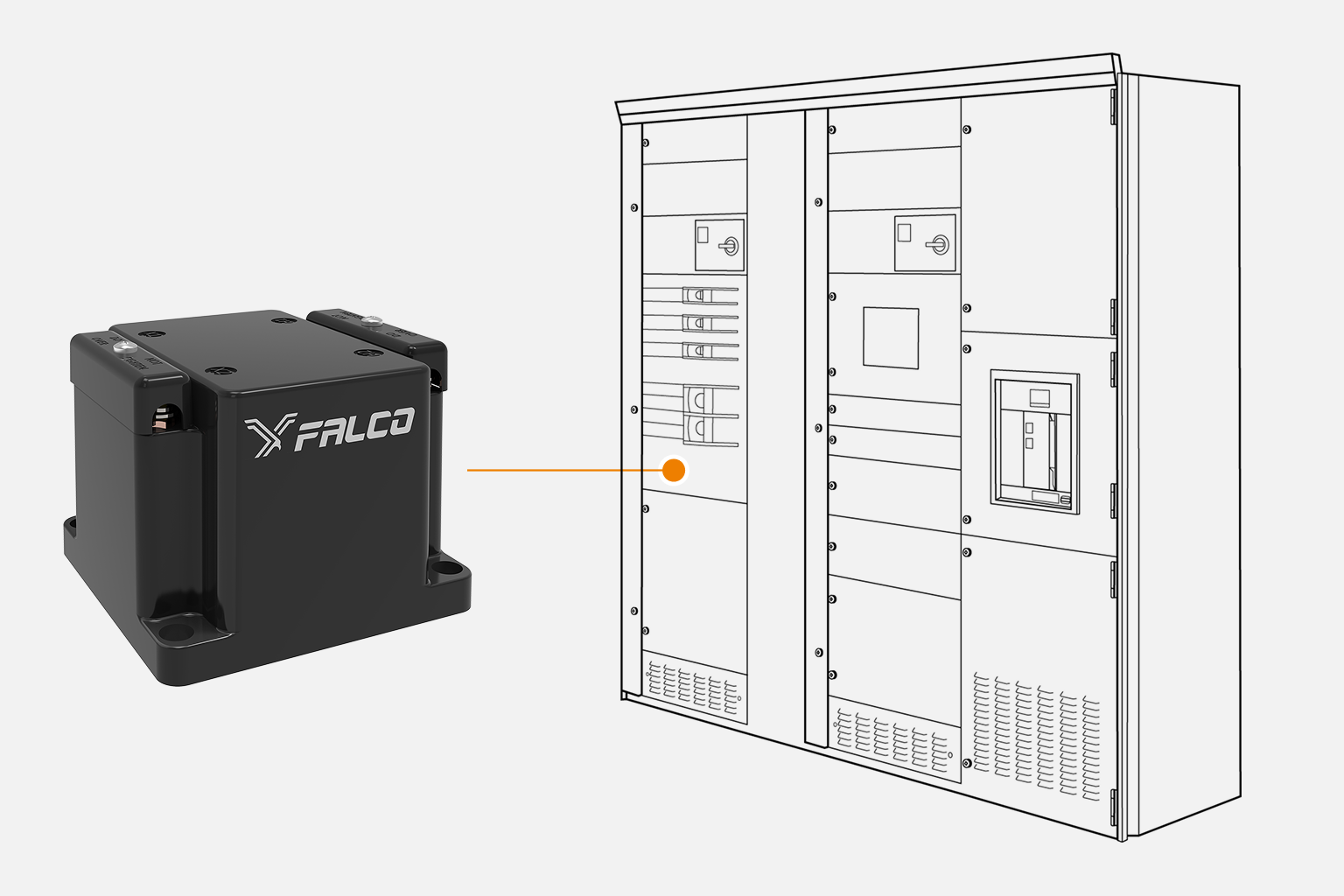

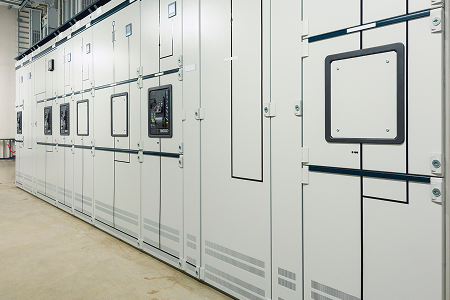

Voltage Transformers are typically found in commercial and industrial installations such as switchgears. VTs have their primary winding connected to the powerline and secondary windings to the measuring instrument. Installation is connected in parallel with the primary line.

FEATURES

Primary Voltage: 69.3V to 600V
Secondary Voltage: 120V
Accuracy Class: 1.2X, 0.6W at 60Hz
Thermal Rating: 150 VA at 30°C AMB, 100 VA at 55°C AMB
Applicable Standard: ANSI IEEE C57.13
UL & CSA approved
Provided with two plastic terminal covers to ensure safety
