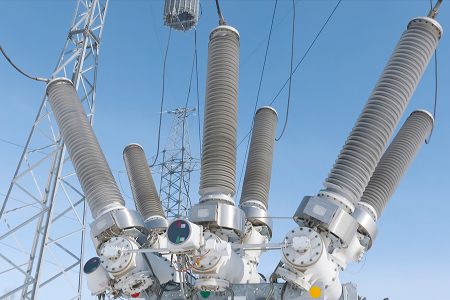

Designed to interrupt fault currents in high-voltage power distribution systems, protecting equipment from damage and ensuring reliable operation.

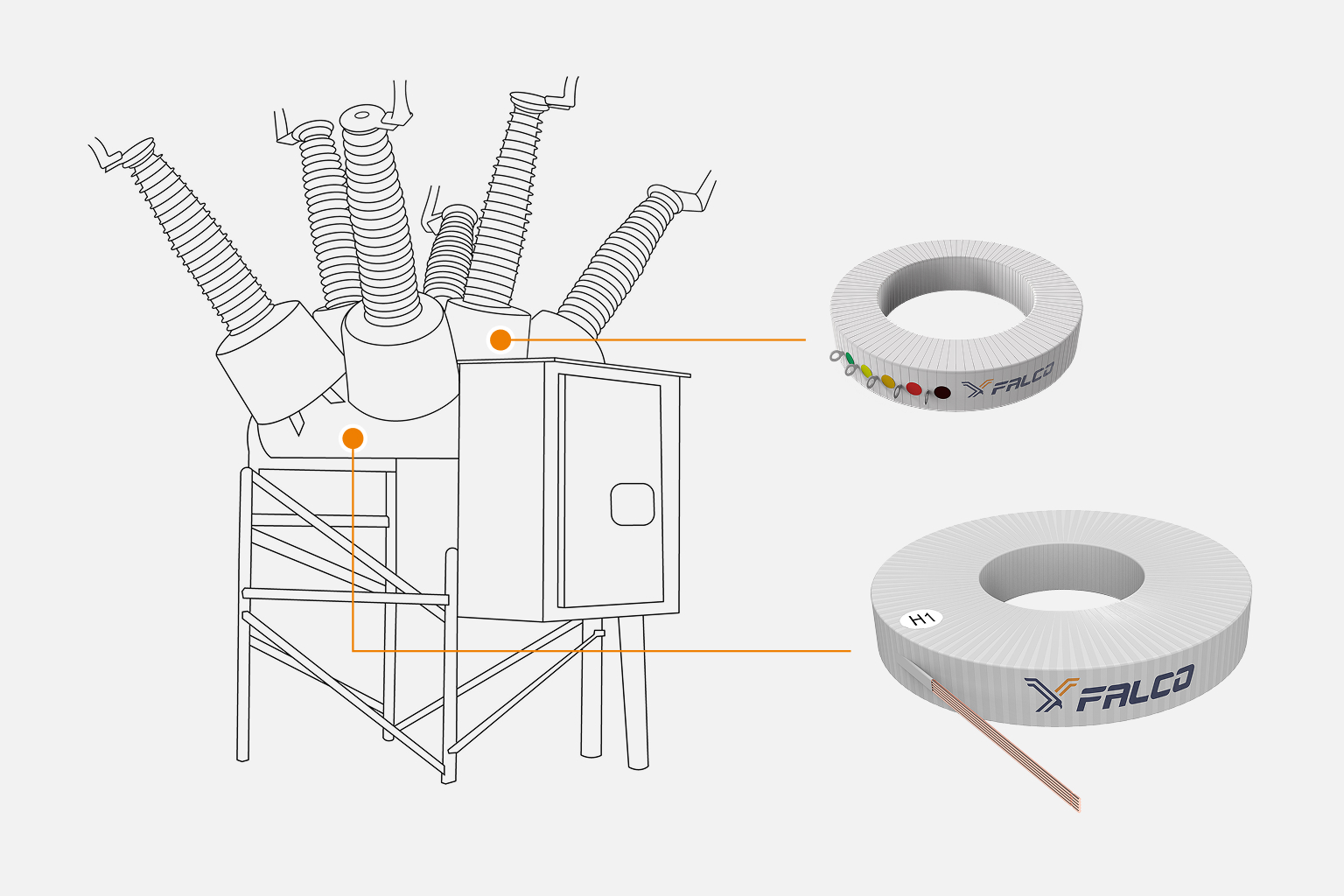

HV Circuit Breaker and Power Transformer
PRODUCTS

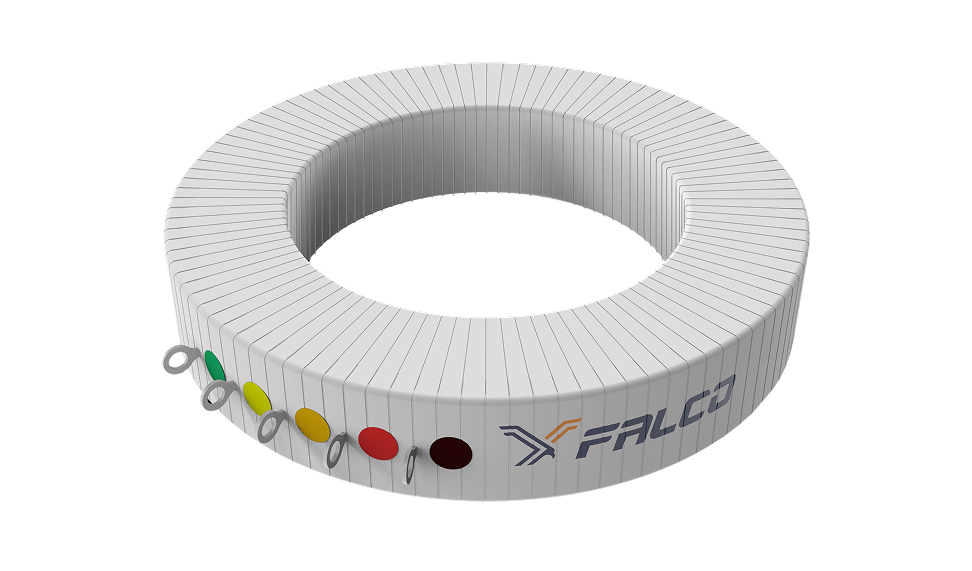

Bushing Current Transformer
ICTW03
Features
- Primary Current: 50 to 5000Amp
- Secondary Current: 5A Max
- Application: Dry or Oil immersed
- Relaying Class: C1200 Max
- PX Class Available per IEC 61869
- Metering Class: 0.15S @45VA for ratios above 600:5A
- Rating Factor: 2.0 @ 55°C
- Voltage Class: 600-720V
- Frequency: 50-60Hz
- Applicable standard: IEEE C57.13, IEC 61869
- Inner Diameter: 3.0” [76mm] to 25” [635mm]
- Outer Diameter: 4.0” [100mm] to 32” [813mm]
- Electrical Insulation System: Class A (105C) to Class F (155C)
- Steel serialized nameplates available
